US Bridgelux 150LM 1W 3V 300mA 6000K 3030 SMD LED Chip

Shenzhen Xuancai Electronic Co., Ltd
Contact Now

US Bridgelux 150LM 1W 3V 300mA 6000K 3030 SMD LED Chip

Brand Name : XUANCAI

Model Number : 1W 3030 SMD LED

Certification : CE ROHS LM-80

Place of Origin : China(Shenzhen )

MOQ : 4000 PCS

Price : $0.023-$ 0.03/ PCS

Payment Terms : T/T, Western Union, Paypal , Alibaba trade assurance

Supply Ability : 300000 PCS/ Month

Delivery Time : 4-7 days

Packaging Details : Blister box packaging

Model : 1W 3030 SMD LED

Size : 3030

Wattas : 1W

Input Voltage : 3-3.4V

Current : 300mA

Luminous Efficacy : 140-150LM/W

CRI : 80/ 70

Color Temparture : 2700K 3000K 4000K 6000K RED Blue Green Yellow

Chip Brand : Bridgelux

Wire : 99.99 Gold Wire

Warranty : 3 Years Warranty

Spanlife : 50,000 Hours

Contact Now

1W 3030 SMD LED Gold Wire 3V 300mA High Lumens 140-150LM/W 2700K 3000K 4000K 6000K CE ROHS LM-80



Product Parameters



Product Information
Item
 1W 3030 SMD LED
Size
3030 SMD LED
Current
    300mA
Voltage
    3V
light color
  3000K/ 4000K/ 5000K/ 6000K/ 7000K/8000K
Chip Brand
  Bridgelux Chip
CRI
     80
Luminous Flux
Spanlife



1400-1800LM
50000 hours



Features:

1.1 Package Size: 3.0*3.0*0.62mm

1.2 Emitted Color:

Whit

1.3 Light-emitting Type

1.4 Soldering Method: SMT Reflow Soldering

1.5 RoHS standard complied.



Package Outline Dimension:

US Bridgelux 150LM 1W 3V 300mA 6000K 3030 SMD LED Chip



Absolute Maximum Ratings(Ta=25℃)

Power Dissipation: 1000mW

Forward Current: 300mA

Peak Pulse Current*1: 225mA

Reverse Voltage: 5V

Soldering Tempearure: 240 (for 10 seconds) ℃

Operating Temperature: -30℃~80℃

Storage Temperature: -40℃~100℃

Electrostatic discharge: 2000V

Foward Voltage: 3-3.4V

Luminous Intensity: 140-150LM/W

Viewing Angle: 120 deg

Color rendering index: 80

Correlated Color Temperature: 2700K 3000K 4000K 5000K 6500K

Reverse Current: 1μA

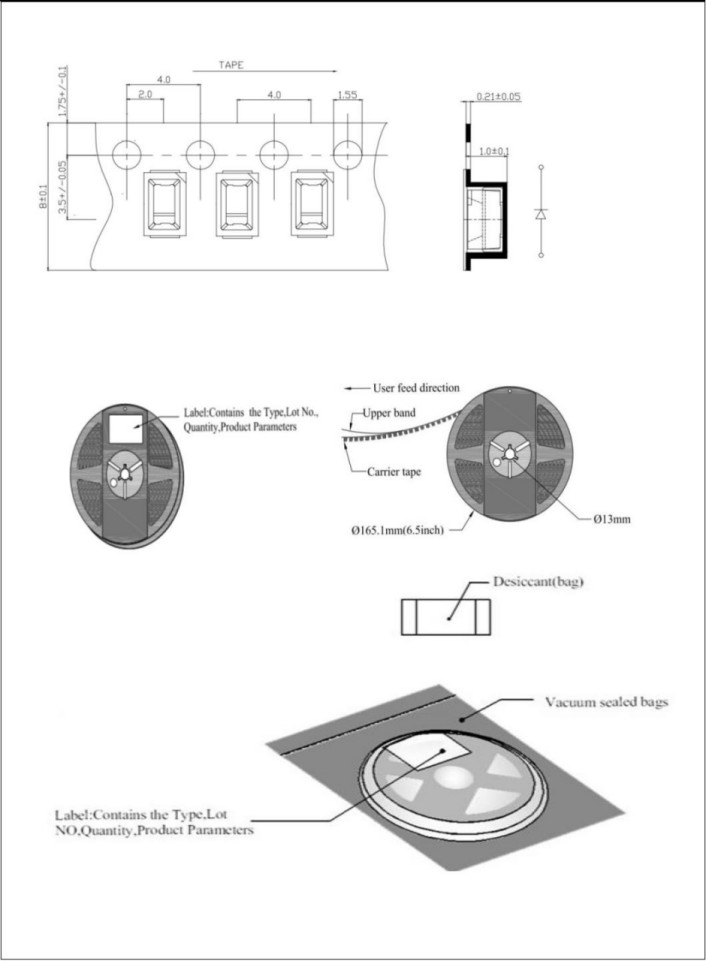

Tapping specifications (Units: mm)

Loaded quantity: 4000 pcs/reel

US Bridgelux 150LM 1W 3V 300mA 6000K 3030 SMD LED Chip




Application



US Bridgelux 150LM 1W 3V 300mA 6000K 3030 SMD LED Chip



US Bridgelux 150LM 1W 3V 300mA 6000K 3030 SMD LED Chip





Precautions for use :



Soldering

SMD LED encapsulation gumwater is flexible, and external force easily damages radiant surface and plastic shell.So when soldering , Please handle with care!

A. Reflow soldering shall be not more than two times and is suggested to be taken under reflow curve conditions with No-clean Flux, .The radiant surface shall be clean and unclean surface may influence the emitting color.

B. Manual soldering is only used for reparing. Anti-static iron (25W) is recommended and tweezer or iron should not touch the radiant surface and plastic parts. The soldering time should be not more than 3 seconds.

C. Don’t twist LED in course of manual soldering and testing, which may cause LED failure.

D. Please select the LED devices in the same BIN on the same PCB, otherwise may cause chromatic aberration.



Cleaning

A . Ultrasonic cleaning is not allowed. We recommend isopropyl alcohol or pure alcohol to for cleaning or dipping within 1 minute and reuse after 15 minutes in room temperature. LThe radiant surface shall be clean after cleaning and other wisemayh influence radiant color.

B. Isoamyl acetate, trichloroethylene, acetone, sulfide, nitride, acid, alkali and salt shall be avoided from LED, which may cause damage to LED.



Encapsulation

A . Encapsulation glue containing sodium ion or sulfide shall be avoided, which may cause fading fluorescence powder (poisoning).

B . When using normal encapsulation glue, trial testing is recommended for 168-hour operation before mass production.



Storage

A. The LED should be stored at 30℃ or less and 60%RH or less before opening the package. The storage shall not be over half a year.

B. After opening the package, the LEDs should be kept at 30-35%RH or less, and should be used within 3 days.

C. When temperature card shows 20% above after package opened, baking treatment shall be conducted before use(for reel package,: baking at 60±3℃ for 12 hrs; for bulk goods, baking at 120±5℃ for 4 hrs)

D. Acid, alkali and corrosive gas should be avoided in storage environment and intensively shock and high magnetic field also avoided.









Trade Show




US Bridgelux 150LM 1W 3V 300mA 6000K 3030 SMD LED Chip







US Bridgelux 150LM 1W 3V 300mA 6000K 3030 SMD LED Chip
