Projector Lamp CXA3590 100W 200W 300W High Power COB LED

Name: Projector Lamp CXA3590 100W 200W 300W High Power COB LED
Brand: XUANCAI
Price: 15 USD

Buy cheap Projector Lamp CXA3590 100W 200W 300W High Power COB LED product

Brand Name : XUANCAI

Model Number : CL-34.85*34.85/30MM

Certification : CE ROHS LM-80

Place of Origin : China

MOQ : 10

Price : $15-$25/PCS

Payment Terms : T/T, Western Union, Paypal , Alibaba trade assurance

Supply Ability : 10000PCS / Month

Delivery Time : 3-5 days

Packaging Details : Blister box packaging

Model : CL-34.85*34.85/30MM

Power : 100W, 200W, 300W

Voltage : 54-57V

Current : 4500-6600mA

Luminous Efficacy : 150-160LM/W

CRI : 70/80

Color Temperature : 2700K, 3000K, 4000K, 6000K

Viewing angle(°) : 120

Application : Project Lamp/ Street Light/ Flood Light

Chip Material : US Bridgelux

Contact Now

CXA3590 Size CL-34.85*34.85/32 High Power 100W 200W 300W Super Light Efficacy 150-160LM/W For Projector Lamp

Advantage: Adopts High-Density, precipitation process, Using the highest light efficiency 160-170LM/W, full arrange of product power covering 3-500W, high light efficiency, high CRI indoor and outdoor lighting products, including store lighting, plant growth lighting, industrial lighting, commercial lighting, ect

Products details

Item	High power LED COB Chip
Size	CL-34.85*34.85/32MM
Power	100W , 200W, 300W
Current	4500-6600mA
Voltage	54-57V
Luminous Efficacy	150-160LM/W
CRI	80/70

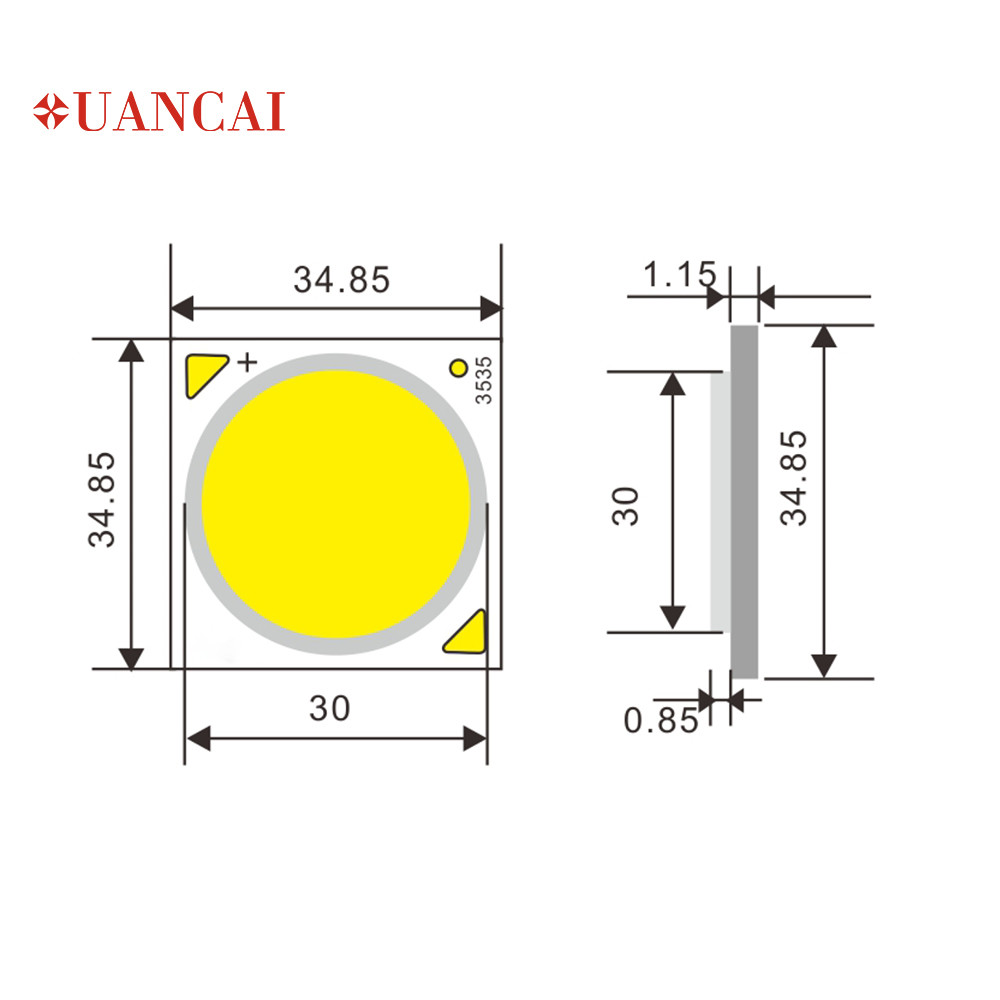

Package Dimensions

Parameters

Product Code

Nominal CCT

CRI(Ra)

Luminous Flux(lm)

Efficacy ( lm/W )

Forward

Voltage

Current

(V)

Min.

Typ.

(mA)

Min.

Typ.

Max.

XC3835-H2012

-A2780-F31

2700K

14380

15137

140

1800

XC3835-H2012

-A2790-D31

12799

13472

125

1800

XC3835-H2012

-A2795-C31

11504

12110

112

1800

XC3835-H2012

-A3080-F31

3000K

14980

15768

146

1800

XC3835-H2012

-A3090-E31

13332

14034

130

1800

XC3835-H2012

-A3095-C31

11984

12614

117

1800

XC3835-H2012

-A3580-G31

3500K

15429

16241

150

1800

XC3835-H2012

-A3590-E31

13732

14455

134

1800

XC3835-H2012

-A3595-D31

12343

12993

120

1800

XC3835-H2012

-A4080-G31

4000K

15579

16399

152

1800

XC3835-H2012

-A4090-E31

13865

14595

135

1800

XC3835-H2012

-A4095-D31

12463

13119

121

1800

XC3835-H2012

-A5080-F31

5000K

15279

16083

149

1800

XC3835-H2012

-A5090-E31

13598

14314

133

1800

XC3835-H2012

-A5095-C31

12223

12867

119

1800

Absolute Maximum Ratings

Parameter	Symbol	Rating
Forward Current	IF	2880mA
Reverse Current	IR	1mA
Operating Temperature	TOPR	-30℃ To +75℃
Storage Temperature	Tst	-30℃ To +75℃
Case Temperature	Tc	85℃
Junction Temperature	TJ	125℃
Soldering Temperature	TSOL	350℃± 10℃ For 5 Seconds
ESD Sensitivity	ESD	2000V HBM

Applications

High current density: suitable for small

Projector Lamp CXA3590 100W 200W 300W High Power COB LED

Trade Show

Projector Lamp CXA3590 100W 200W 300W High Power COB LED

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production takes about one week

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pcs for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by Air Shipping. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
 Secondly We quote according to your requirements or our suggestions.
 Thirdly customer confirms the samples and places deposit for formal order.
 Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2-3 years warranty to our products.

Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
 than 0.2%.
 Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
